How to Fix a Broken XPower Dump Truck Drive Switch

 My son got an XPower "Pulls up to 50 Lbs!" dump truck for his birthday, but within a week it had stopped working. It would turn on and make noise, but would only drive sporadically. It turns out the problem is a somewhat flaky button design with an easy repair: Add a spring to the button

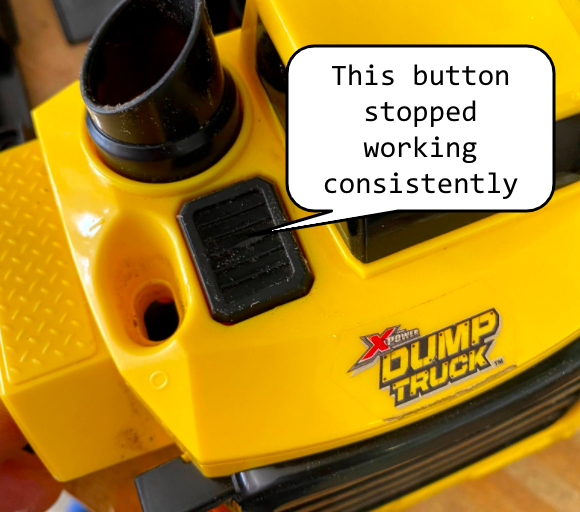

Figure 1: The XPower Dump Truck Power Button Stopped Responding

Disassembly

There are only two kinds of screws used, both with Phillips heads, so disassembly is easy. You have to remove the wheel drive assembly to get to the circuit panel on which the problem switch is located.

  1. Remove the bottom plate, which includes the battery pack.
  2. Remove the wheel assembly (all four wheels come off in one large assembly). This will reveal the two screws noted below (Figure 2)
  3. Slide the cab off of the gear and motor assembly. The cab slides "up" from the truck's perspective.
  4. Remove the circuit board, speaker, and bed-closure button (Figure 3). There is no need to disconnect any wires.
  5. Remove the button (Figure 4)

Figure 2: Remove these Screws to take off the Cab and Circuit Board

Figure 3: The Circuit Board

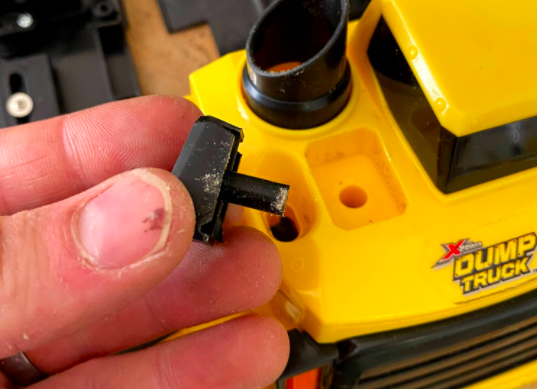

Figure 4: The "go" Button is the Problem

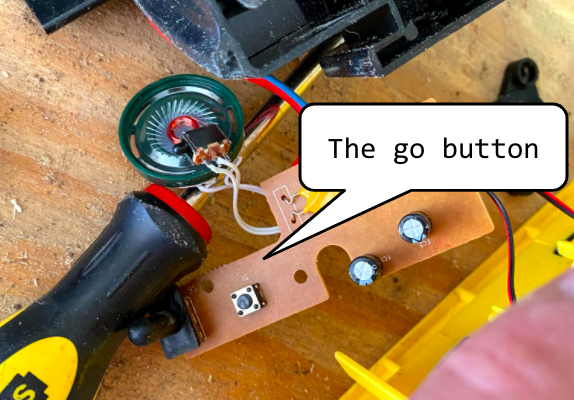

Figure 5: The Go Button Switch on the Circuit Board

Repair

The problem is that this button can get stuck in the up or down position. To solve this problem, I added a little spring to the button. I used a metal shears to make a little more room inside the button head (Figure 6), then added a small spring (Figure 7). Make sure that the spring is small enough that the button can still make contact with the switch.

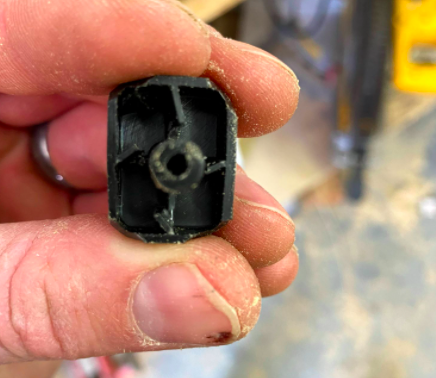

Figure 6: Making a Little Room for the Spring

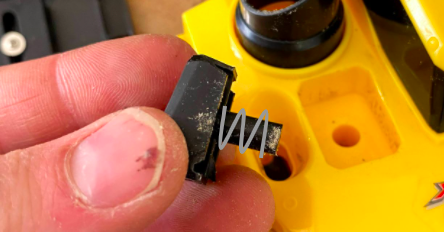

Figure 7: Positioning of Spring


Figure 8: Success!
